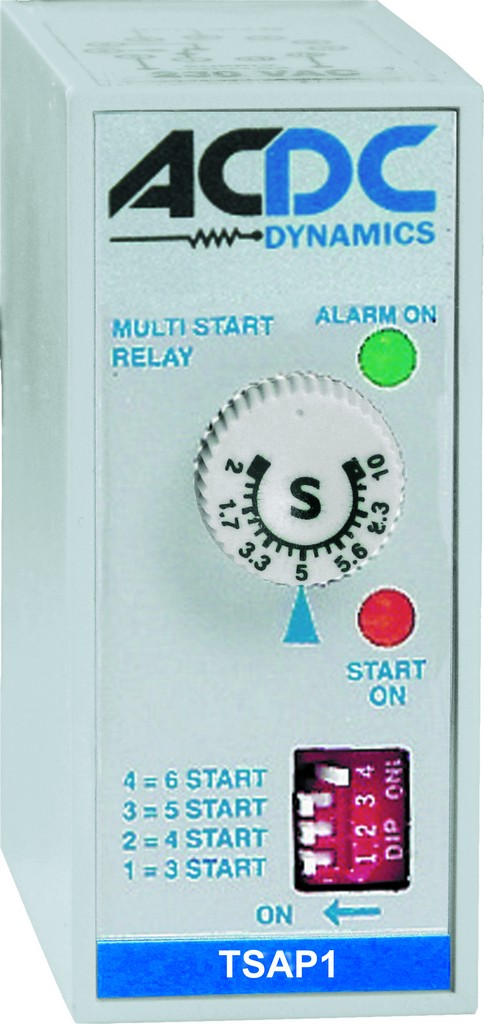

Upon application of the supply voltage, the ‘start’ relay operates for a set ‘on’ duration followed by a set ‘dwell’ cycle. After the relay has operated for the no. of starts as per the dip switches and the supply voltage is still present, the ‘alarm’ relay will operate and this condition will prevail until the supply voltage is removed.
Dip switch setting:
3-6 starts
Start time: 0.5-30sec adjustable.
