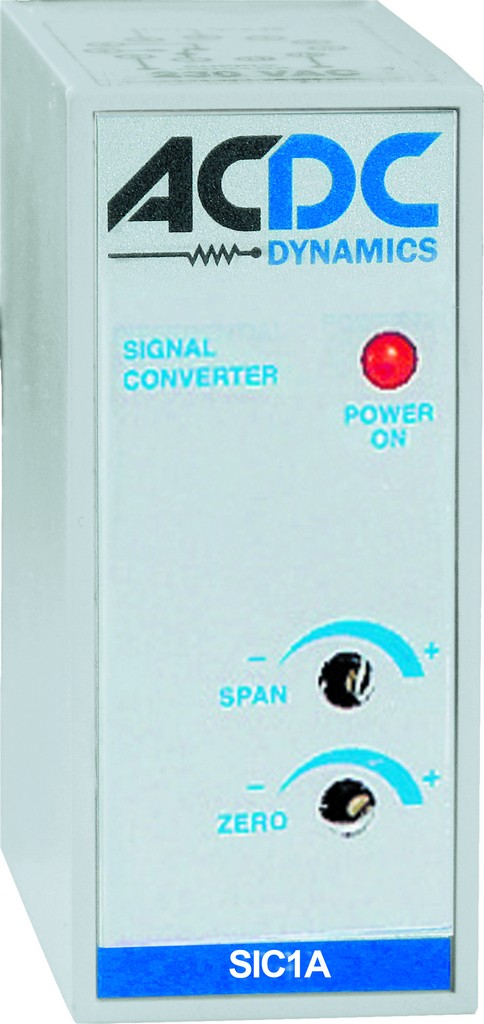

The single converter modules convert various input signals to a 4-20mA or 0-10V DC signal. They are intended for use with all PLC and other instrumentation systems.
Input selection:
A: 0-5 Amps AC/DC
B: 0-1 Amps AC/DC
R: Ohms
V: Voltage range AC/DC
Calibration: For field calibration, energise module and set input to maximum. Adjust SPAN until output is 20mA/10V. Set input to minimum requirement and adjust ZERO until output is 4mA/0V. Calibration is complete.
Red LED: Power On.
