Type
- Measures the velocity of liquid inside a pipe or channel.
- High sensitivity and accuracy.
- Can be calibrated for liquids with different density and purity.
- Pmax: 100Bar

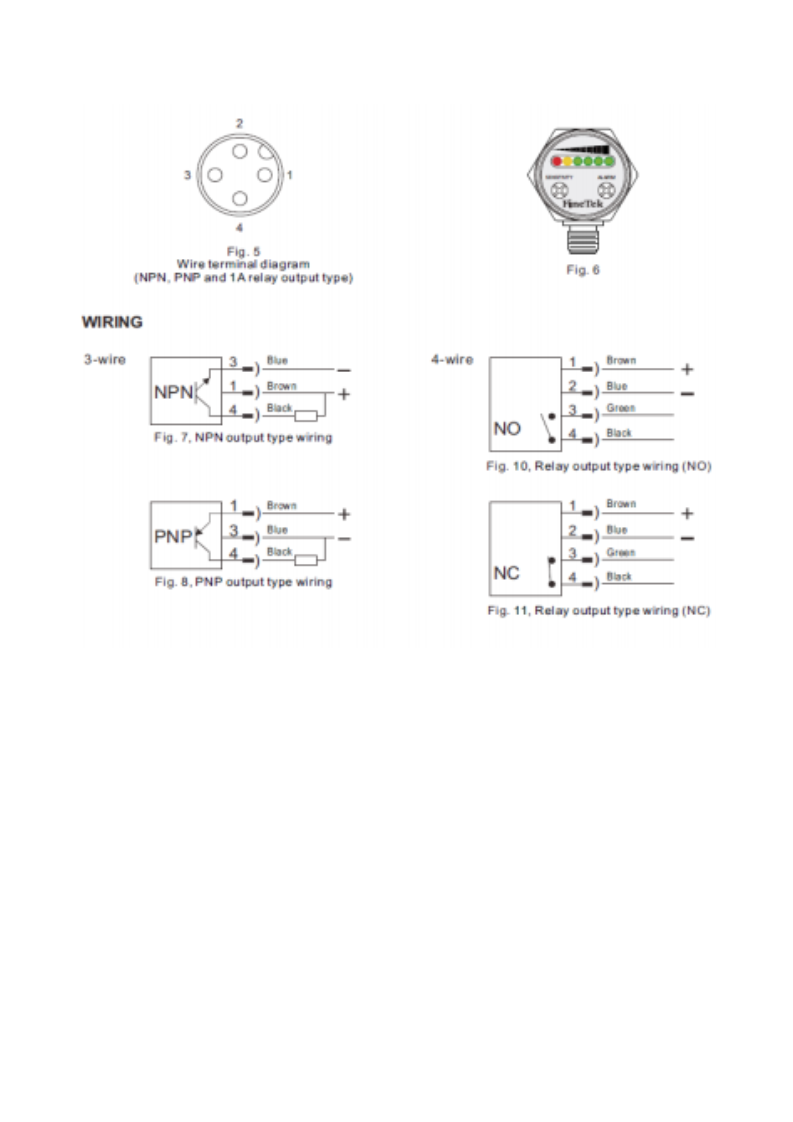

Output Type
N: NPN Open Collector (400mA Max)
P: PNP Open Collector (400mA Max)
A: NO (1@30VDC)
B: NC (1A@30VDC)
Connection Thread
½” NPT
Measuring Range
Water: 1 – 150 cm/s / Oil: 3-300 cm/s
Operating Voltage
19-30VDC
Operating Temperature
-20ºC to 80ºC
Protection Degree
IP67
Housing Material
SUS316L
Connection Type
4-Pole M12 Connector (c/w 2m Cable)
