Features:

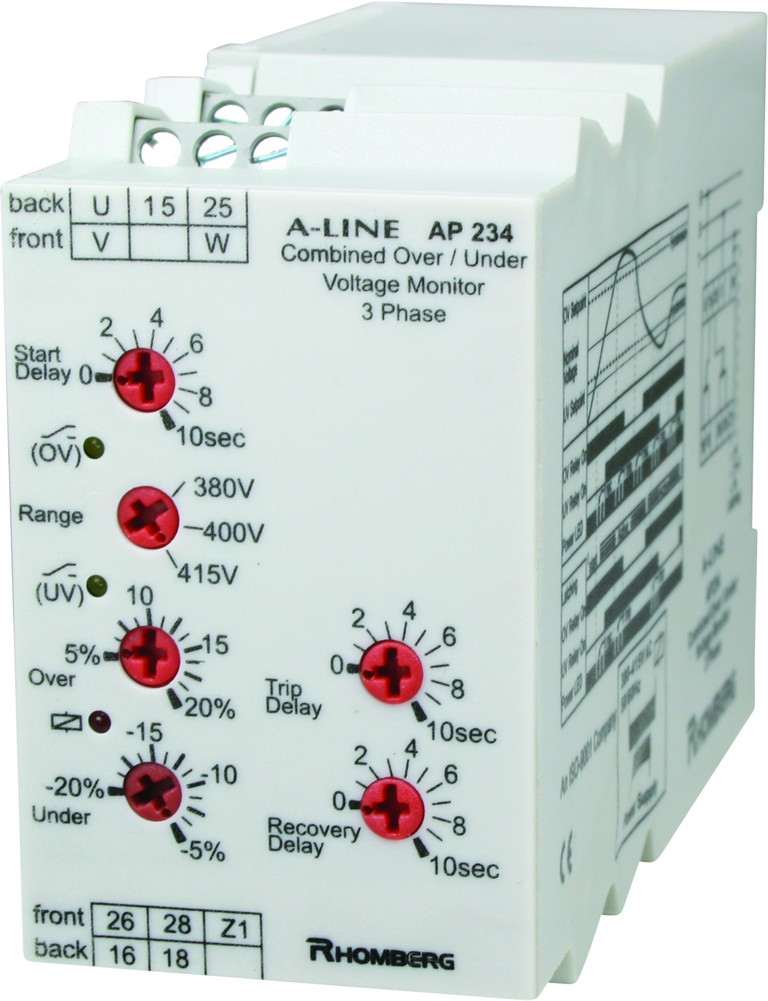

- Phase failure (AP234)
- Phase & Neutral Failure ( AP235)
- DIN rail format
- Combined over-voltage and under-voltage monitoring
- Separate relays for over-voltage and under-voltage
- Monitoring of own supply voltage
- AP235 Available with neutral
- Selectable power supply voltages
- High precision and repetitive accuracy
- Independent adjustment of over voltage and under voltage stpoints
- Adjustable response times – available on trip/or recovery (0.1 to 10 seconds)
- LED indication of over-voltage relay on and under voltage relay on (power LED flashes when timing)
- 8A SPDT over-voltage relay output
Specification
Power Supply:
Supply type: AC transformer supply only
Supply voltage: 115, 230, 400, 525V AC
Housing width: 45mm
Power Consumption: 2VA (approx)
Isolation: Galvanic (without latching)
Voltage Tolerance: ±20%
Voltage Sensing:
Setpoints: The unit is calibrated to trip on the RMS value of the supply voltage (assuming no AC waveform distortion)
Repetitive accuracy: 1%
Hysteresis: 2% (fixed)
Hysteresis relates to the supply voltage
Response:
Response time on trip: 0.1 – 10 seconds (adjustable)
Response time on recovery: 0.1 – 10 seconds (adjustable)
Start-Up delay: 0 – 10 seconds (adjustable)
Latching inhibited during power up.
